BlueRock™

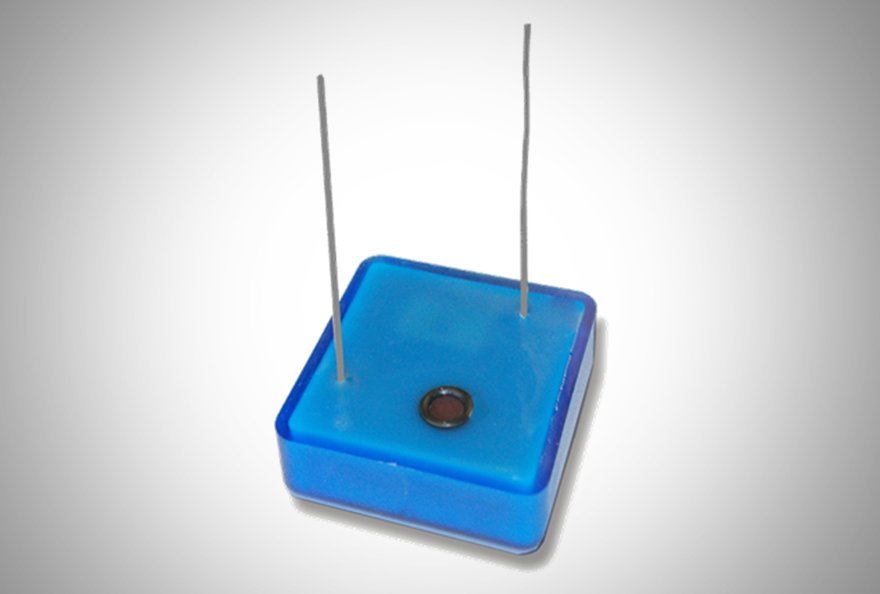

BlueRock is a rugged, waterproof concrete data sensor designed to wirelessly monitor the relative humidity and temperature of concrete from fresh to hardened stages.

GET A QUOTE

BlueRock can be placed in the concrete at the pouring time to monitor the temperature and humidity of concrete in-situ. The continuous measurements are recorded on the BlueRock memory and can be downloaded at any time during the concrete setting and hardening using BlueRock mobile app.

The continuous monitoring of concrete relative humidity and temperature can be used as a QC/QA method. By knowing the level of humidity in the concrete, flooring companies can decide on the timing of installation of floor covering (such as resilient flooring, epoxy coating, or wood) based on the type of concrete materials. Unlike the current destructive and time-consuming methods that measure only one data point at the testing time and require drilling a hole in concrete, BlueRock offers an embedded wireless solution for continuous measurement and accurate monitoring of internal humidity variations in concrete over time.

The continuous monitoring of concrete relative humidity and temperature can be used as a QC/QA method. By knowing the level of humidity in the concrete, flooring companies can decide on the timing of installation of floor covering (such as resilient flooring, epoxy coating, or wood) based on the type of concrete materials. Unlike the current destructive and time-consuming methods that measure only one data point at the testing time and require drilling a hole in concrete, BlueRock offers an embedded wireless solution for continuous measurement and accurate monitoring of internal humidity variations in concrete over time.

Applications

BlueRock can be used to monitor the temperature and relative humidity of fresh and hardened concrete. This can provide information on:

  • Drying level in concrete floors
  • Effectiveness of curing conditions
  • Optimization of flooring installation
  • Water penetration in concrete
  • Monitoring of humidity gradients

Features

Hardware

  • Wireless technology
  • Rugged and waterproof design
  • Continuous measurement and recording of temperature and relative humidity at a wide range of user-selected intervals; ranging from one measurement every few minutes to every several hours.
  • Easy installation and activation through tying the wires together
  • Long battery life (up to 2 years1)
  • Patents pending

Software

  • Real-time data display of relative humidity and temperature
  • Free Android and iOS apps for smartphones and tablets
  • Interactive history trend plotting of temperature and relative humidity
  • Easy data organization among different embedded sensors
  • Easy data sharing of the most updated sensor data
  • Full report generation in csv and pdf format
